MTB Carbon Zer0

MTB Carbon Zer0 150 150 PROTOTYPE

Carbon Zer0

The best for the best.

Developed with the fastest XC riders in the UCI World Cup, the Prototype World Cup is your all out cross country wheelset.

With its hookless full carbon and tubeless ready rim, it is ready for high intensity, aggressive  World Cup XC races, providing  the best traction and a super accurate driving experience.

Main objective: improve your personal record!

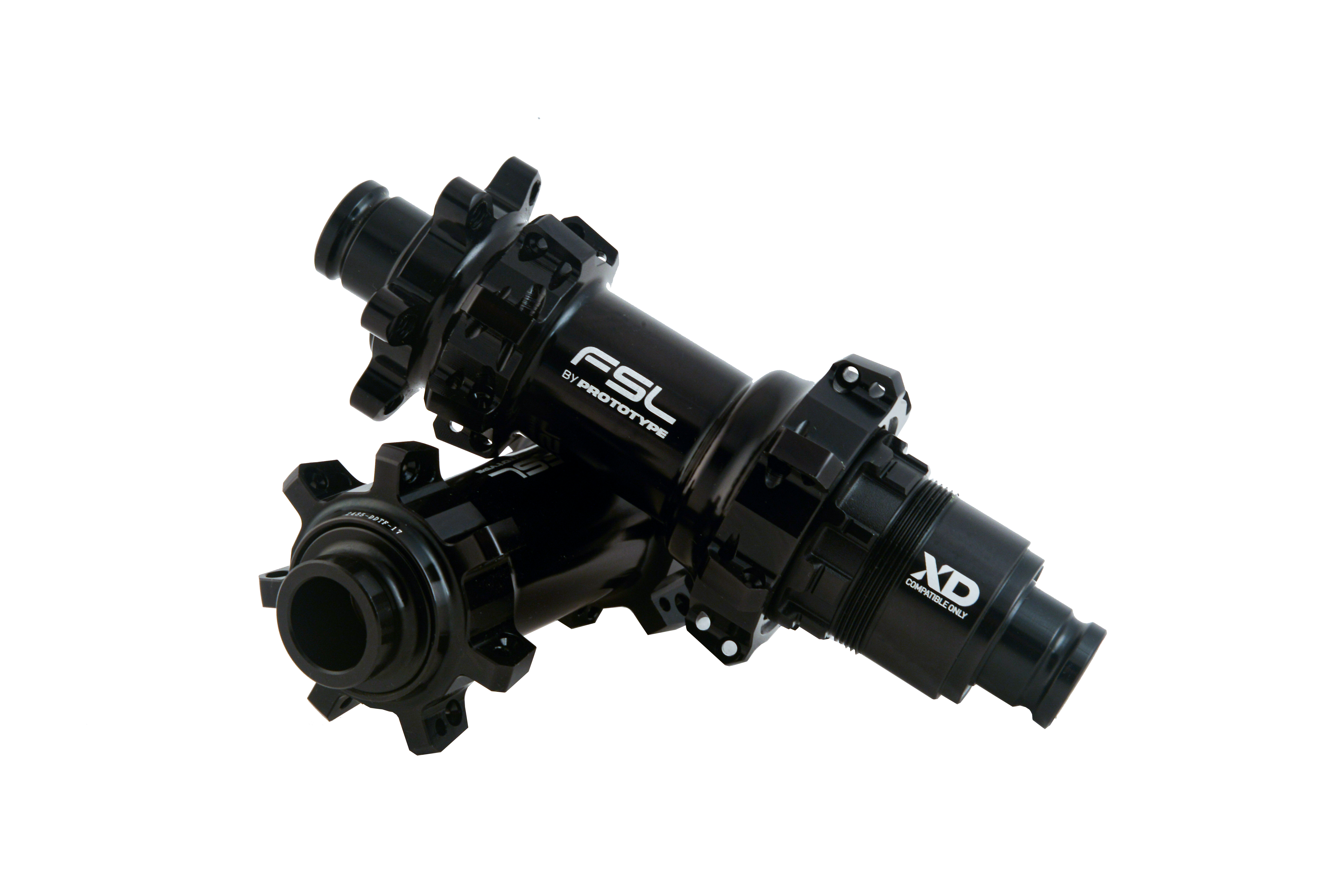

HUB Detail
RIM Detail

MSRP: 990 €

Vlad Dascalu has proven the quality and reliability of PROTOTYPE products, the world champion jersey is the result …

Performance and reliability are our main concerns.

Products are laboratory tested to the limit, as well as elite athletes who have won over 50 national and international titles.

After a year of exhaustive testing at the XCO World Cup, culminating in Vlad Dascalu World Champion jersey, the World Cup wheels are ready to bring you the best results and feel your bike in a different way.

KEY BENEFITS

Use every inch of the track!

Accelerate, corner and sprint faster with lighter, stiffer wheels.

All the details make the difference.

The 27mm inner wide rim offers perfect tire integration and makes the sidewall of the tire more “straight” increasing cornering accuracy.

With 30mm profile, 32mm width, full-carbon rim offers the perfect transfer to the ground of every watt you put on your bike, producing a instant acceleration.

The geometry of the SL 2.0 aero spokes makes it possible to increase wheel stiffness by 15%, maintaining the aerodynamic component of conventional aero rays and without sacrificing weight.

SPECIFICATIONS

Rim

  • Material: full carbon
  • Width (inner/outer): 25/31mm
  • Profile: 25mm
  • Type: tubeless ready
  • Rim shape: hookless

Hub

  • Model: FSL 3.0
  • Material: Aluminium
  • Bearings: sealed – PROTOTYPE PRO 2
  • Braking System: IS (6-bolt)
  • Clamping: thru-axle or QR

Tire

  • Size: 29″
  • Type: tubeless or tubeless ready
  • Width: 2.0 to 2.5
  • Max. Pressure: 60psi /4bar

Spokes and Nipples

  • Model: rounds
  • Type: J bend
  • Spoke material: sandvik
  • Nipple material: aluminium

Compatibility Wheel

  • Front Wheel
  • Caps: 15x110mm (Hub FSL 3.0 110)
  • Caps: 9x100mm/ 15x100mm (Hub FSL 3.0)
  • Hub: Lefty / Lefty Supermax
  • Rear Wheel
  • Caps: 12x148mm (Hub FSL 3.0 148)
  • Caps: 10x135mm/ 12x142mm (Hub FSL 3.0)

Options

  • Front caps: std
  • Freweel body options: Shimano 11, Sram XD or Micro Spline
  • Ceramic Bearings: no
  • Color: white decal

Wheelset and weight

  • Discipline: XC
  • ASTM: 3 – ASTM List
  • Weight limit: 100kg
  • Weight (29″ boost): 1560gr

  • Include accessories: user manual, UST Rim tape, valves

Note: The weights indication is just a reference value.
