MTB RW

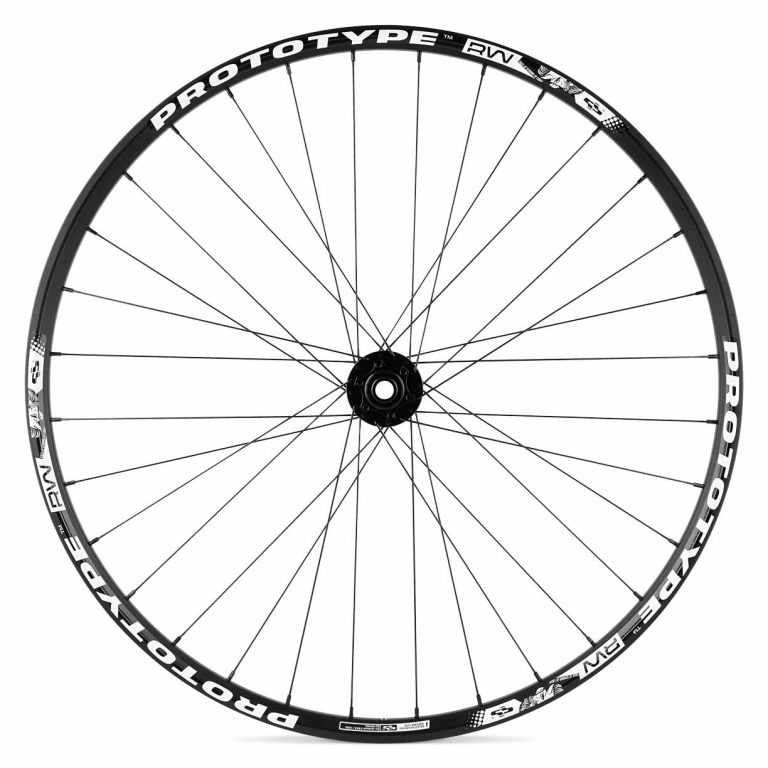

MTB RW 150 150 PROTOTYPE

RW

Smooth and solid wheels, wide rim-profile. Ideal for heavy riders or all mountain use!

The RW wheels has been revamped to meet the demands of modern cross country bikes and trails.

The rim is also very durable and features 32 spokes in one of our toughest hubs.

The optimized hub form made it possible to increase the spoke bracing angle, which improves the stiffness.

In a nutshell, it’s ready to attack!

HUB Detail
RIM Detail

MSRP: 485 €

SPECIFICATIONS

Rim

  • Material: aluminium
  • Width (inner/outer): 23/28mm
  • Profile: 18mm
  • Type: tubeless ready
  • Rim shape: standard

Hub

  • Model: FSL 3.0
  • Material: Aluminium light-force
  • Bearings: sealed – PROTOTYPE PRO 2
  • Braking System: IS (6-bolt)
  • Clamping: thru-axle

Tire

  • Size: 29″
  • Type: tubeless or tubeless ready
  • Width: 1.8 to 2.5
  • Max. Pressure: 60psi /4bar

Spokes and Nipples

  • Model: round
  • Type: J bend
  • Spoke material: stainless steel
  • Nipple material: aluminium

Compatibility Wheel

  • Front Wheel
  • Caps: 15x110mm (Hub FSL 3.0 110)
  • Caps: 9x100mm/ 15x100mm (Hub FSL 3.0)
  • Hub: Lefty / Lefty Supermax
  • Rear Wheel
  • Caps: 12x148mm (Hub FSL 3.0 148)
  • Caps: 10x135mm/ 12x142mm (Hub FSL 3.0)

Options

  • Front caps: std
  • Freweel body options: Shimano 11, Sram XD or Micro Spline
  • Ceramic Bearings: no
  • Color: sticker
  • Optional Extreme: steel axle and steel freeweel.

Wheelset and weight

  • Discipline: XC
  • ASTM: 3 – ASTM List
  • Weight limit: 110kg
  • Weight (29″ boost): 1780gr

  • Include accessories: user manual, UST Rim tape, aluminium valves

Note: The weights indication is just a reference value.
